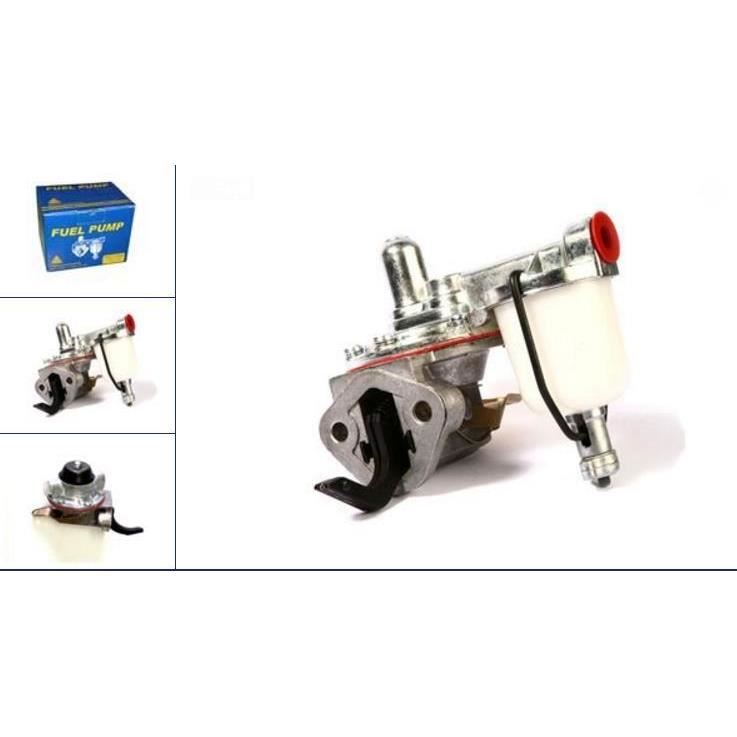

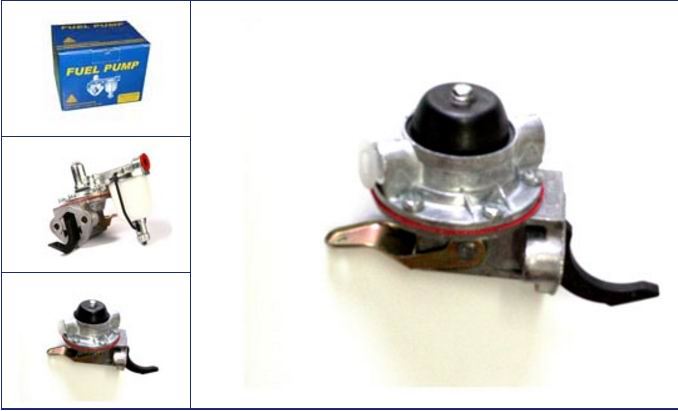

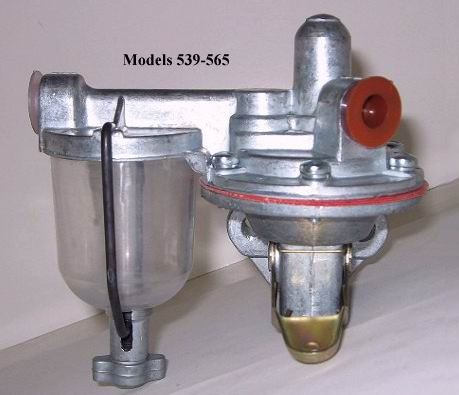

Pompa alimentare cu pahar IPM 120.00.00
INLET M14*1,5
OUTLET M14*1,5
Aplicatii:
IMT 539, 540, 560, 555S 4WD, 549 4WD, 549 DLI, 539 S
Rakovica 7, 65S, 65DV, 65 Super
M33 i M34 for all applications (DM33)
Crosscode: 2513, SP146, 804502, PTZ PN 6166A+KO

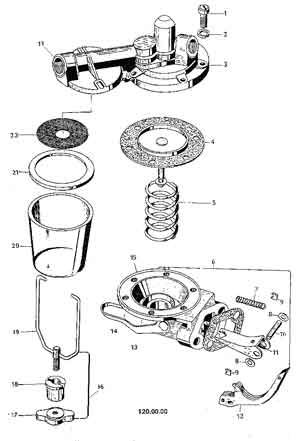

Parti componente
Serial Number IPM Part No. Description Quantity
1 0.1.230.17 Screw 6
2 0.1.150.11 Spring washer 6
3 120.01.00 Housing pump, assy 1
4 120.04.00 Diaphagm, assy 1
5 0.1.810.68 Spring 1
6 120.03.00 Housing with lever 1
7 0.1.810.50 Spring 1
8 0.1.111.02 Washer 2
9 120.03.06 Circlip 2
10 0.1.512.01 Pin 1
11 120.03.05 Lever 1
12 120.03.10 Lever 1
13 120.03.03 Lever 1
14 120.03.04 Spring 1
15 120.03.01 Housing pump,assy 1
16 120.02.00 Bowl carrier,assy 1
17 130.10.05 Nut 1
18 130.10.04 Holder 1
19 120.02.10 Clip sping 1
20 120.00.03 Bowel filter 1
21 0.7.115.35 Seling ring 1
22 120.00.01 Filter 1
