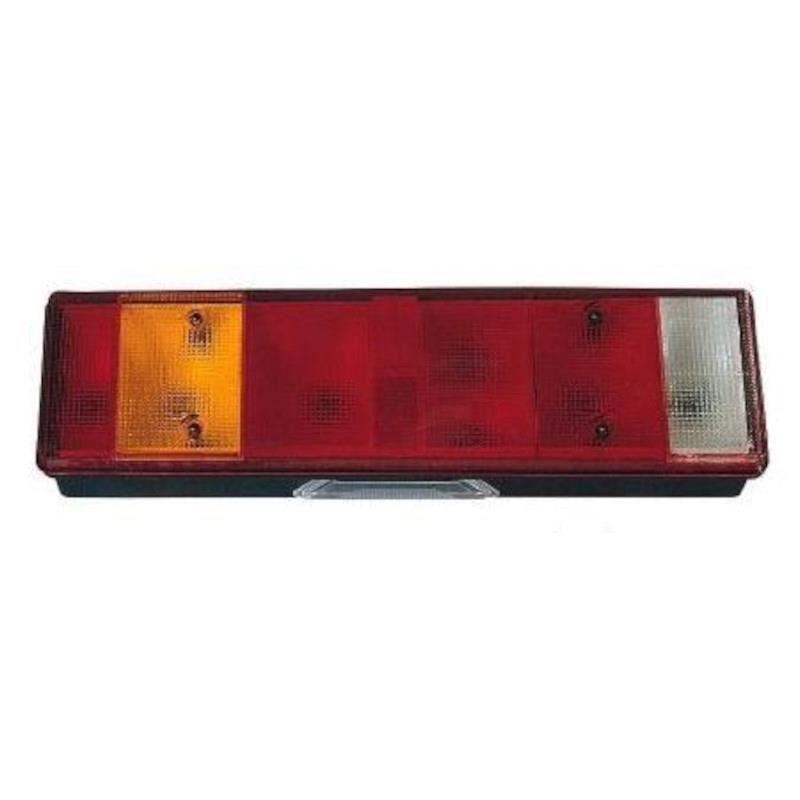

Lampa stop multifunctionala cu 8 functii, cu cablu, (tip Iveco), stanga, LT250cab Promot.

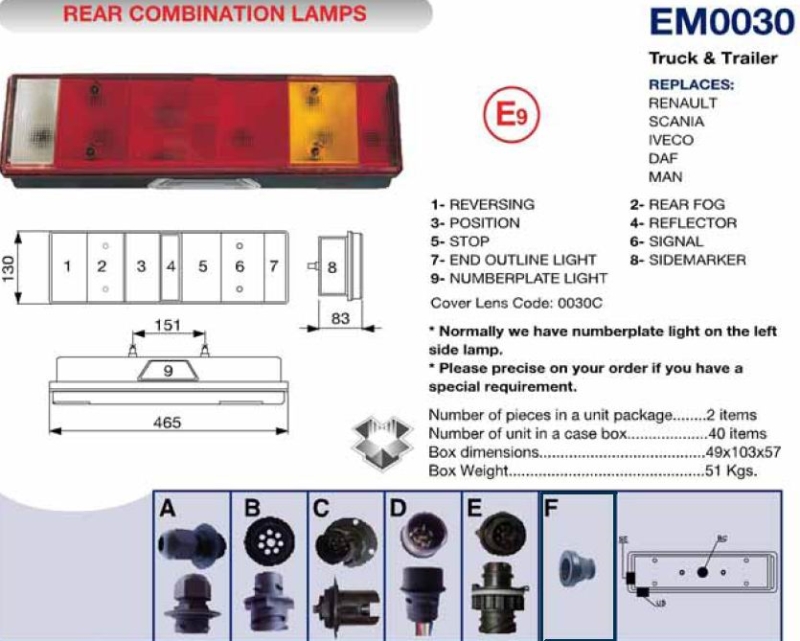

Dimensiuni: 465mmx130x85mm (latime x inaltime x grosime).
Functioneaza la 12V sau 24V.
Bec 4x21W(P21W), 2x5W(R5W) si 21/5W(P21/5W); Nu sunt incluse in dotare.
Numar functii: -pozitie, frana, semnalizare, ceata, mers inapoi, gabarit lateral rosu si galben, catadioptru.
Carcasa din plastic negru.
Reflector dintr-o singura bucata de marimea carcasei, cu 7 compartimente.
Dispersor cu catadioptru, incorporat de dimensiune medie, prins in patru suruburi de carcasa, etansat cu garnitura de cauciuc.
Prinderea lampii in doua suruburi M8 din dotare.
Distanta intre suruburi de 152mm.
Omologare E9.
Aplicatii: RENAULT, SCANIA, IVECO, DAF, MAN.
Coduri similare:
FT-028L/LT250cab Promot.
CERAY 326030 7 326030-SKT 7 326030-C 7
Stop-tail-direction indicator-reversing-fog tail-side marker light with reflector.
With AMP 1.5 connector at the side.
Tail light left, with license plate lamp IT 0702J 00024
Tail light, right IT 0702J 00025
Lens left, right IT 0702J 00030
IVECO
Iveco Daily Euro series 02/'96 ->
Iveco Daily Van series 02/'96 ->
Stop-tail-direction indicator-reversing-fog tail-marker light.
(Vignal)
Tail light, left, with reflector, with side marker light, spec. Iveco connector 3 168590 VI LC7 K4 J11C
Tail light, left, with reflector, with license plate lamp, with side marker light, spec. Iveco connector. 3 168610 VI LC7 K4 J12C
Tail light, right, with reflector, with side marker light, spec.Iveco connector.3 168600 VI LC7 K4 J31C
Lens with reflector for all types LC7 K 057500 VI PLC7 K
(Leart)
Tail light, left 07614
Tail light, right 07613
Tail light, left, with reflector 07611
Tail light, right, with reflector 07610
Tail light, left, with reflector, with license plate lamp 07612
Tail light, right, with reflector, with license plate lamp 07652
Lens 07654
Lens, with reflector 07655
DAF
DAF XF 105 10/’05 ->
DAF CF/XF 01/’01 ->
1272653 IT 0702J 00030
1625985 IT 0702J 00024
1625986 IT 0702J 00025
81252256523 IT 0702J 00025
81252256524 IT 0702J 00024
81252296055 IT 0702J 00030
MAN
MAN TGA 07/’99 -’05
1272653
1625985
1625986
81252256523
81252256524
81252296055
